Repair of broken T-slots on a press ram

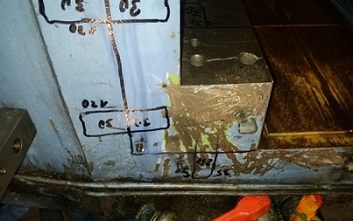

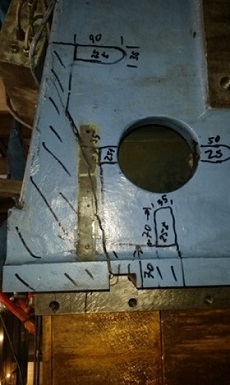

Brocken T-slots

Drawing of the T-grooves to be made

Manufactured T-slots made of steel


Milling the groove for the T-slots

Milling the groove for the T-slots

Machined out area for inserting the T-slot

Prepare the T-slot segment to be used

T-slot segment to insert

Pressure device for the T-slot segment
T-Nute Segment eingesetzt
Insert T-slot segment and pressed on
T-Nut eingesetzt
T-Nut eingesetzt
T-slot segment inserted and fixed
Aufgebohrt und vernietet
drilling and riveting
T-Nut Zeichnung
Only riveting up to half otherwise the T-slots are pressed together
Gewinde eingebracht
Inserted in every second bore thread
Bohrung abgeschraubt
Unscrewed every second hole
Komplett abgeschraubt
Completely unscrewed
Erste Seite verstemmt
First side caulked
Schrauben komplett verstemmt
Inserted screws completely caulked
Reparaturstelle beigeschliffen
Repair site was sanded
Instandsetzung abgeschlossen
Reparaturstelle lackieren
Repair completed, the outside must still be painted
